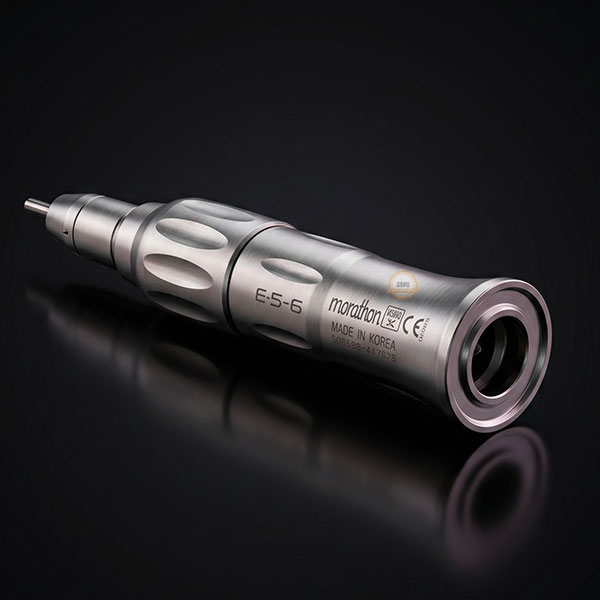

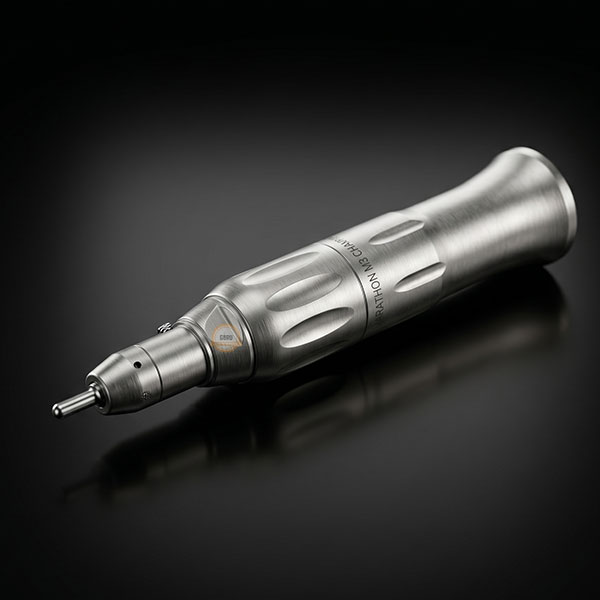

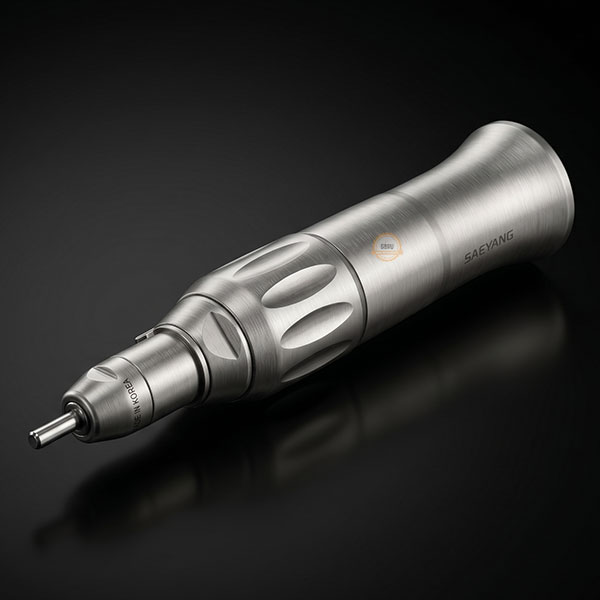

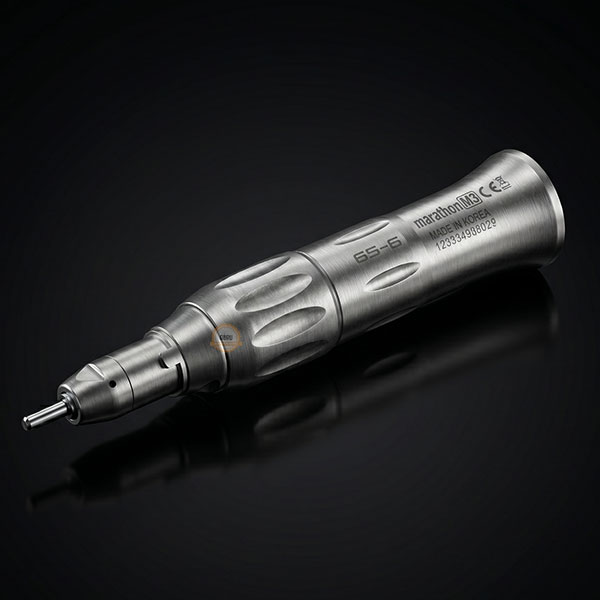

Marathon SDE-ES6 (ES06) Straight Handpiece

The Marathon SDE-ES6 Straight Handpiece, available from Guru Hair Instruments, is a compact and precision-oriented handpiece suitable for professional micromotor applications. When fitted with a compatible FUE punch and holder, it can be used during follicular unit extraction procedures to support controlled, stable and efficient graft harvesting.

Its straight, slim profile provides comfortable handling and helps the surgeon maintain proper alignment while working around different areas of the scalp. The 1:1 gear ratio transfers the micromotor’s speed directly to the handpiece without increasing or reducing it, supporting predictable rotation and precise control.

With a maximum supported speed of 40,000 RPM, the ES6 is compatible with a range of clinical working speeds. The actual operating speed should always be selected according to the punch type, graft characteristics, scalp condition and surgeon’s technique.

Key Features

• Maximum supported speed of 40,000 RPM
• Direct 1:1 gear ratio
• Lightweight and compact construction
• Straight ergonomic design for comfortable handling
• Twist-lock chuck for easy insertion and removal of compatible instruments
• Smooth and controlled rotational performance
• Connects to a compatible E-type micromotor
• Autoclavable construction for clinical sterilization
• Suitable for use with compatible FUE punches and punch holders
• Designed for trained clinical professionals

Technical Specifications

• Brand: Marathon by Saeyang
• Model: SDE-ES6, also commonly written as ES06
• Type: Straight handpiece
• Maximum speed: 40,000 RPM
• Gear ratio: 1:1
• Weight: Approximately 71 g
• Dimensions: Approximately 85 mm × 20 mm diameter
• Connection: Compatible E-type micromotor connection
• Instrument locking: Manual twist-lock chuck
• Sterilization: Autoclavable according to the manufacturer’s instructions

Application in Hair Transplant Procedures

During an FUE hair transplant, the handpiece can be connected to a compatible micromotor and fitted with the appropriate punch assembly. Its balanced straight design supports controlled movement around the follicular unit, helping the operator maintain the required angle, direction and depth during scoring.

The handpiece is suitable for scalp and beard graft extraction when used with the correct punch size and compatible accessories. Clinical performance depends on the micromotor, punch configuration, selected speed and the surgeon’s technique.

Cleaning and Maintenance

The handpiece should be cleaned, lubricated and sterilized after every procedure according to the manufacturer’s instructions. Always inspect it for unusual vibration, excessive heat, abnormal sound or punch wobble before and during use. Stop operating immediately if any abnormality is detected.

Allow the micromotor to stop completely before inserting, removing or changing the punch assembly. Proper cleaning, lubrication and autoclaving help maintain smooth operation and extend the service life of the handpiece.

Important Notice

This is a professional clinical instrument intended for use by trained and qualified personnel only. The FUE punch, punch holder, micromotor and control unit may be supplied separately unless specifically included in the selected package.

Marathon ES6 Straight Handpiece—lightweight construction, dependable control and precise performance for professional micromotor applications.
